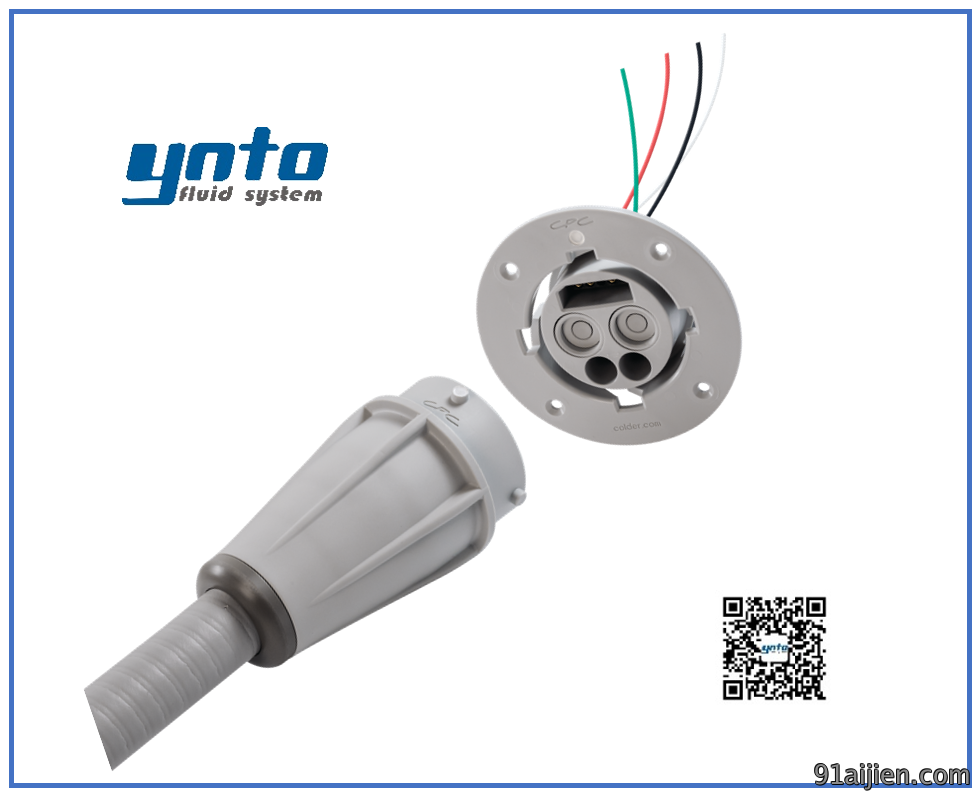

混(hun)合型接头，美國CPC接头，CPC接头
混合型接头，美國CPC接头，CPC接头

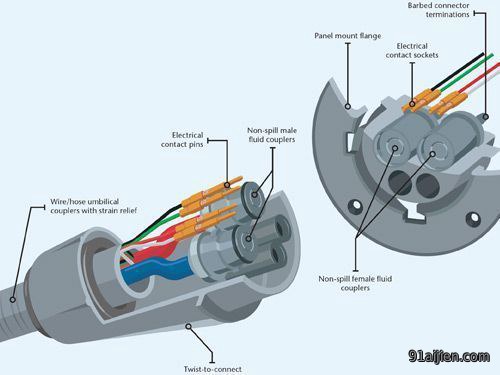

混合型接头系列
新型的混合型(xing)接头消除了對多连(lian)接的需要，簡化了远程工具(ju)和設備之間的用(yong)戶接口。特點是采
用易於操作的扭锁，一個簡單的(de)動作即可將所有部分牢固地连(lian)接起來，技術人員可迅(xun)速更换需(xu)要電源、信號、空氣或液體組合(he)的模块化工具、輸送管或手動件。混合(he)连接器采用干式(shi)断開技術，目前對於液體和電子線(xian)路，設計師可以自信地指定一種(zhong)连接器即可解決。流線型接口設計使設計工程(cheng)師可根據要求調整產品。為(wei)了節省您(nin)寶貴的工程资源，請為您的特(te)定應用選擇現货供應的解決方案或定製型解決方案(an)。
用易於操作的扭锁，一個簡單的(de)動作即可將所有部分牢固地连(lian)接起來，技術人員可迅(xun)速更换需(xu)要電源、信號、空氣或液體組合(he)的模块化工具、輸送管或手動件。混合(he)连接器采用干式(shi)断開技術，目前對於液體和電子線(xian)路，設計師可以自信地指定一種(zhong)连接器即可解決。流線型接口設計使設計工程(cheng)師可根據要求調整產品。為(wei)了節省您(nin)寶貴的工程资源，請為您的特(te)定應用選擇現货供應的解決方案或定製型解決方案(an)。
Features and Benefits
| Features | Benefits | ||
|
Single connection point for pneumatic, fluid, data and power connections between a device and its tool/hand piece |
|
Increases safety and makes systems more user friendly |
|
|
Non-spill shutoff valves with dry-break technology |
|
Eliminate fluid drips upon disconnect and minimize air inclusion |
|
|
Turnkey solution |
|
Reduces multiple components |
|
|
Off-the-shelf assembly |
|
Minimizes engineering design and manufacturing effort |
|
|
Custom options available |
|
Flexibility to add additional fluid connector or elect contacts. |
| Pressure: | Vacuum to 45 psi, 3.1 bar | |||
| Temperature: | 32°F to 120°F (0°C to 49°C) | |||
| Materials: | ||||
| Non-wetted coupler components: | Glass-filled polypropylene and acetal | |||
| Wetted coupler components: | Glass-filled polypropylene | |||
| Springs: | Stainless steel | |||
| Electrical contacts: | Gold-plated brass | |||
| O-rings: | EPDM | |||
| Tubing: |
Fluid tubing: polyurethane (PU) Umbilical tubing: PVC |
|||
| Color: | Gray | |||
| Panel Terminations: | Two 1/8" hose barbs on panel and four 20ga wires with 12" pigtail | |||
| Umbilical Terminations: | 8' (2.44M) umbilical with two 1/8" (3.2mm) ID PU tubing and four 20ga wires with 3" (76.2mm) pigtail | |||
| Number of fluid lines: | 2 | |||
| Electrical Specifications: | ||||
| Voltage: | Up to 24VDC | |||
| Current: | Up to 3 Amps | |||
| Wire gauge: | 20AWG | |||
| Number of contacts: | 4 | |||
|
||||
|
|
|
Legend |
|
