DTLD接头，美國CPC接头，CPC接头
DTLD接头，美國CPC接头，CPC接头

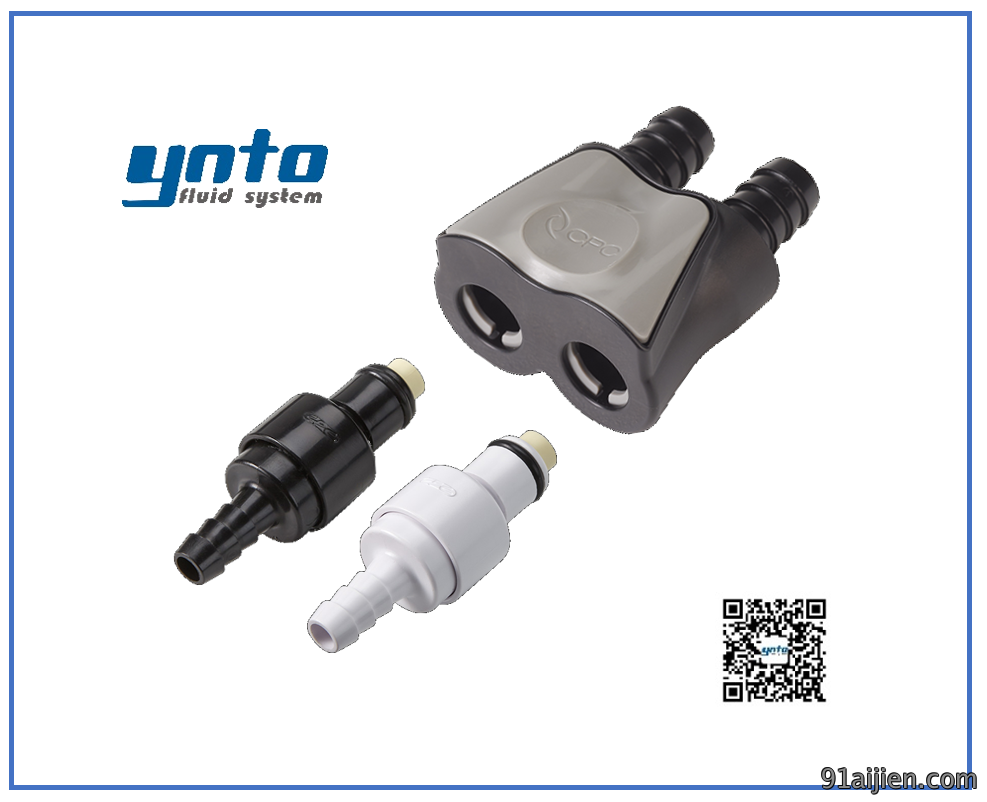

DTLD
The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting. One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts.
Features and Benefits
| Features | Benefits | ||
|
Single thumb latch |
|
Minimizes inadvertent latch activation |
|
|
Latch always in position to accept insert |
|
Ensures leak-free operation |
|
|
Compact, modular design |
|
Fits well in the hand and is easy to wipe down |
|
|
Independent quick connections |
|
Requires minimal manual dexterity |
| Pressure: |
Vacuum to 20 psi, 1.38 bar |
||||
| Temperature: |
32°F to 120°F (0°C to 48°C) |
||||
| Materials: | |||||
| Main components: |
ABS |
||||
| Thumb Latch and Retainer: | Acetal | ||||
| Internal insert valve: | Polypropylene | ||||
| Springs: | 316 Stainless steel | ||||
| O-rings: | Buna-N | ||||
| Color: |
White with blue latch |
||||
| Tubing Sizes: |
1/4” to 3/8” ID, 6.4mm to 9.5mm ID |
||||
| Compliance: |
REACH and RoHS |
||||
| Internal body valve: |
Acetal |
||||

|
|||||
| WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of CPC’s products in their own application conditions. | |||||
|
Cv 0.63 (9.13) max |
|
Cv 0.42 (6.09) max |
|
Legend |
|
