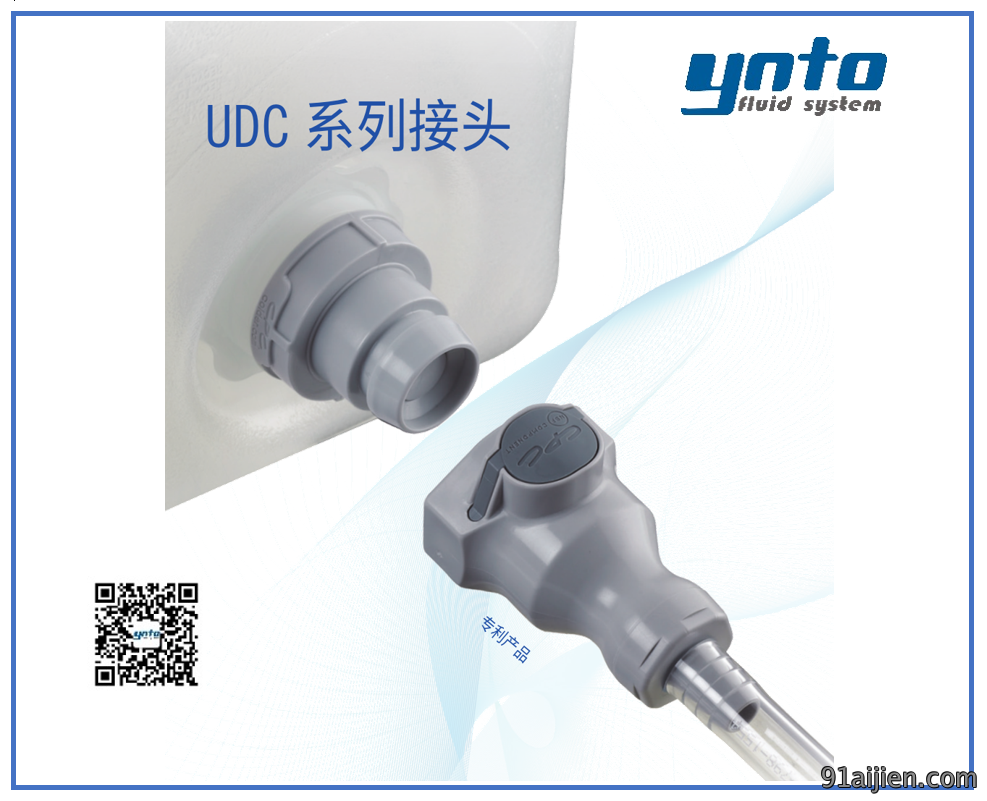

UDC系列接头，美國CPC接头，CPC接头
UDC 系列
已申請的3/8"流量分配接头（UDC）可為標準(zhun)38mm螺(luo)纹或卡扣式瓶塞提供通(tong)用连接。可快速连接散裝包裝系統包括盒(he)中(zhong)袋（BIB），柔性和(he)剛性包裝方式(shi)。自動(dong)无泄漏阀地降低了资(zi)金浪費和泄漏的危险。符合人體工學的設計和带防護指锁按钮使接头易於把握，操作簡單。
所有UDC 系 列 符合 NSF/ ANSI 169準則， 適(shi)合於(yu)分裝液體，調(diao)味品或其它食(shi)物基料。
UDC 系(xi)列還可提供可選RFID（射頻识別）能力。
Features and Benefits
| Features | Benefits | ||
|
Universal 38mm cap |
|
Fits most manufacturers’ fitment necks |
|
|
Flush face/non-spill valves |
|
Minimize spillage |
|
|
Shrouded thumb latch |
|
Protects against accidental disconnects |
|
|
RFID technology (iUDC only) |
|
Helps maintain warranty, integrity, brand protection |
| Pressure | 20" Hg Vacuum to 15 psi, 1 bar (body only) | ||
| Temperature: | 32°F to 160°F continuous, 0°C to 71°C continuous | ||
| Materials: | |||
| Main body components and valves: | Polypropylene and Acetal | ||
| Thumb latch: | Polypropylene | ||
| Springs: | 316 stainless steel | ||
| O-rings (food grade): | Silicone, Buna-N and EPDM | ||
| CIP adapter: | Acetal | ||
| Color: | Light gray with charcoal gray latch | ||
| Closure size: | SP-400 38mm | ||
|
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. |
|||
IdentiQuik Specifications
RF Communication Range: Approximately 1”
Interface: RS232 & USB
Operating Voltage:
RS-232: 8-24V
USB: 5V
Power Consumption: 1.2W maximum
RFID Tag:
ISO 15693, 13.56MHz, 112 bytes programmable
Temperature: 32oF to 150oF (0oC to 65oC)
|
Cv ~ 2.1 (30.27) |
|
Legend |
|
