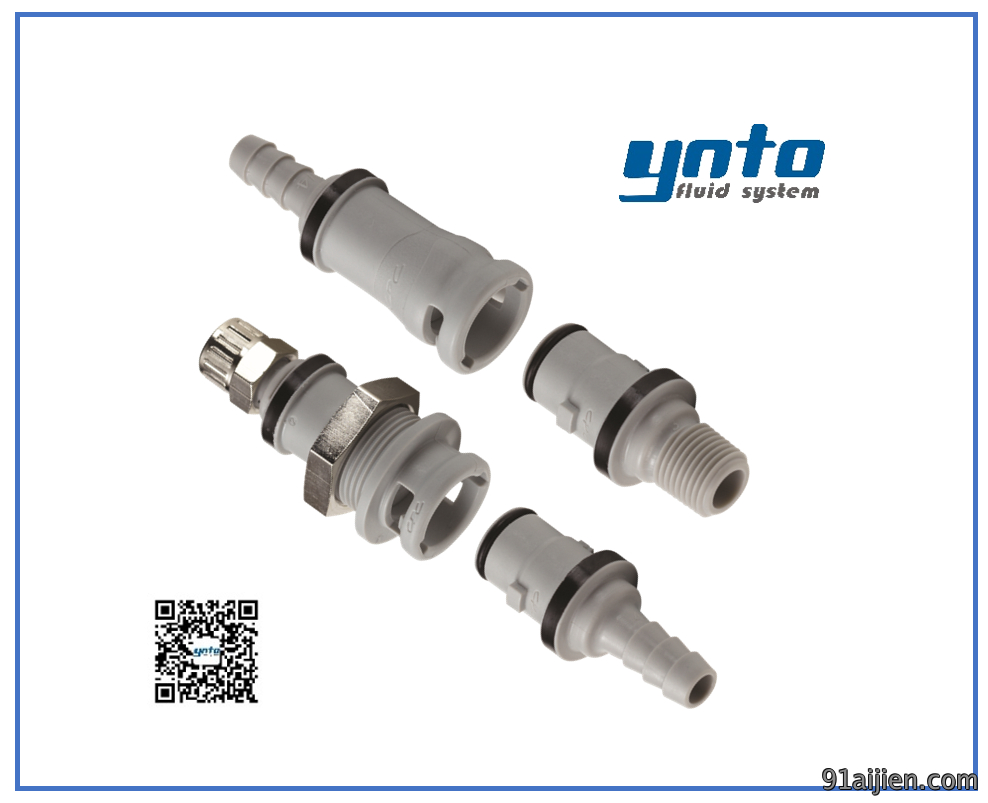

NS212系列接(jie)头，美國CPC接头，CPC接头
NS212系列接头，美國CPC接头，CPC接头
NS212 系列
NS212系列接头跟CPC其它无溢漏系列的接头一樣，為提供快速、安全、真正无(wu)泄漏管線连接而設計。NS212 提供(gong)了一種快速、旋接(jie)式接头(tou)，带一體式锁紧裝(zhuang)置和雙面无(wu)泄漏截止阀。NS212 亦具有抗化學性，是(shi)許多應用(yong)的理想產品。
Features and Benefits
| Features | Benefits | ||
|
Efficient, non-spill design |
|
Disconnect under pressure with no spills |
|
|
Multiple seal materials |
|
Broad chemical compatibility for diverse applications |
|
|
Twist-to-connect locking |
|
Easy, non-spill connections in tight spaces |
|
|
Compact design |
|
High flow in a small connector |
|
|
Ultra low air inclusion |
|
Minimizes contaminants, reduces the need to purge lines |
| Pressure: | Vacuum to 45 psi, 3.1 bar | |||
| Temperature: | 32° F to 120° F/0° C to 49°C | |||
| Flow capacity: | Cv~0.45 | |||
| Spillage: | <0.025 cc/disconnect | |||
| Inclusion: | 0.009 cc/connect | |||
| Materials: | ||||
| Main components and valves: | Glass-filled polypropylene | |||
| Valve spring: | 316 stainless steel | |||
| Seal material: | EPDM (FKM/Simriz FFKM optional) | |||
| Color: | Gray with black accent standard | |||
| Tubing Sizes: | 1/8" to 1/4" (3.2mm to 6.4mm) | |||
|
|
||||
| WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide. | ||||
|
Cv ~0.45 |
|
Legend |
|
